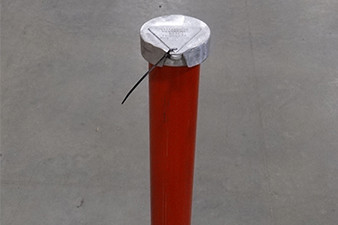

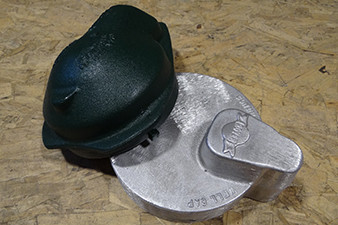

Aluminum Locking Caps are ideal for monitoring wells providing a light weight material for easy handling, impervious to the elements with the aluminum construction and lockable to prevent vandalism. This are 2 piece caps. The bottom cap is held in place with set screws and the upper cap is secured with a padlock. *Padlock not included. Please contact us for further information.
Monuments & Steel Casing Protectors are quality machined to avoid possible damage to an installed well. The lockable protectors have aluminum locking caps to avoid any contamination to the well. MPS offers a range of Monuments & Casing Protectors and well covers for various well sizes.
Centralizers easily attach to screens and risers to prevent off center well placement. MPS offers Stainless Steel as well as PVC (with clamp) Bow String Centralizers. Custom sizes available.

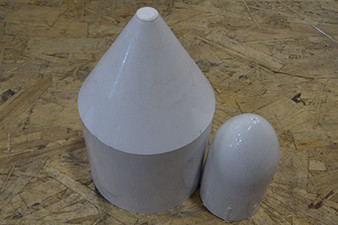

We offer a range of Caps and Points for Geotechnical & Environmental drilling applications including PVC Sandpoints, PVC Slip Caps, and PVC Threaded caps. All caps and points are manufactured to Schedule 40 or Schedule 80 specifications.

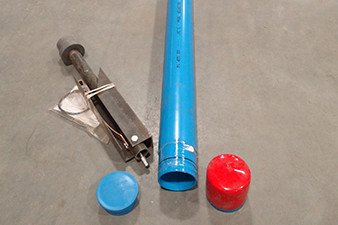

Slope Inclinometer Casing is a special purpose pipe used in inclinometer installations. It maintains access for the inclinometer probe, allowing it to obtain subsurface measurements as well as controls the orientation of the probe via internal grooves. Slope Inclinometer Casing also conforms to movement of the surround ground.
The quality of our products is of the highest importance. Our strict adherence to ASTM and industry standards guarantee quality in every product.
All of our PVC pipe products are fabricated from Type 1, Grade 1 PVC and are manufactured to applicable ASTM and NSF standards.
All threading is performed to ASTM F-480 specifications (unless otherwise specified) and all of our monitor well casings/screens are no-print, non-solvent cleaned, and plastic wrapped, boxed or encased.

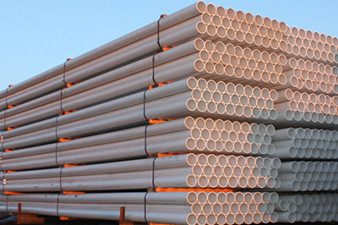

PVC Environmental Pipe is available in Schedule 40, Schedule 40 F-480, Schedule 80, and Schedule 80 F-480. Custom sizes available upon request. Stainless Steel Screens are also available upon request.

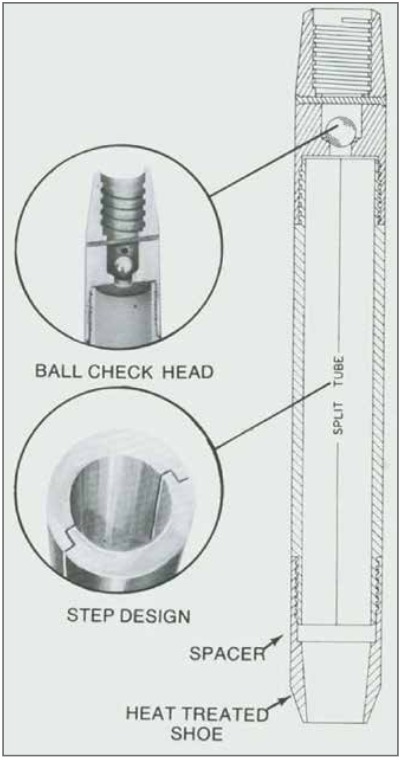

Heavy duty split tube Lynac Samplers are a heavy duty version of the standard split tube sampler. It is designed to better adapt to severe service under hard driving unlike the standard samplers.
Coarse threads in the sampler head speeds assembly and disassembly and the shoe is heat treated to withstand exceptional abuse.
The standard length of the samples is 18” with 24” option. Ball check prevents washing out sample on withdrawal from the hole and the shoe is recessed to accommodate a trap valve and spring pr basket retainer.
